Hotel Lock Systems

Two technologies. One goal: secure room access.

Depending on the project, choose a conventional battery-powered electronic lock or a DND-integrated access architecture with no battery in the door lock.

Conventional Battery-Powered Electronic Hotel Lock

A standalone hotel lock with reader, control electronics and mechanical locking structure operating together on the door with battery power.

RFID/card-based guest and staff access

Reader and control electronics on the door

Independent battery operation

Low-battery warning and planned maintenance

Guest validity periods and staff authorization

Model-dependent emergency mechanical opening and audit functions

Encoder and hotel lock management software integration

Options for new projects and renovations

Fire Door Applications

Suitability for a fire-rated door depends on the certified doorset as a whole, including door, lock, hardware and installation. Fosil Kilit recommends a product for fire-door use only within the verified test/certification scope of the selected model. No fire-resistance duration or standard is claimed until the relevant product documentation is verified.

Conventional Lock Product Image

Lock Body / Door Application

PRODUCT MODELS

Classic Battery-Powered Lock Models

Selected S60 series models using Mifare card technology. The suitable model is selected according to door construction, quantity and project requirements.

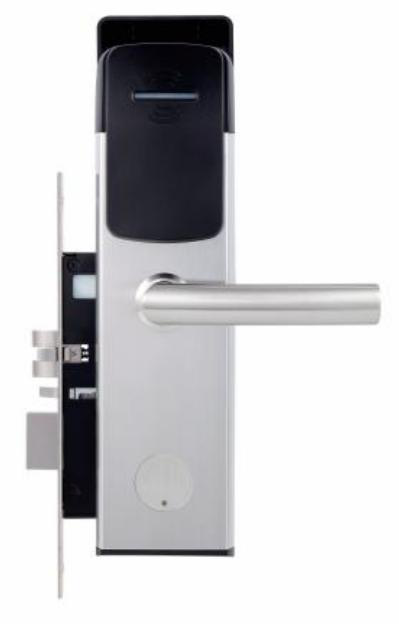

F1-S60

Mifare electronic hotel lock.

Request Quote

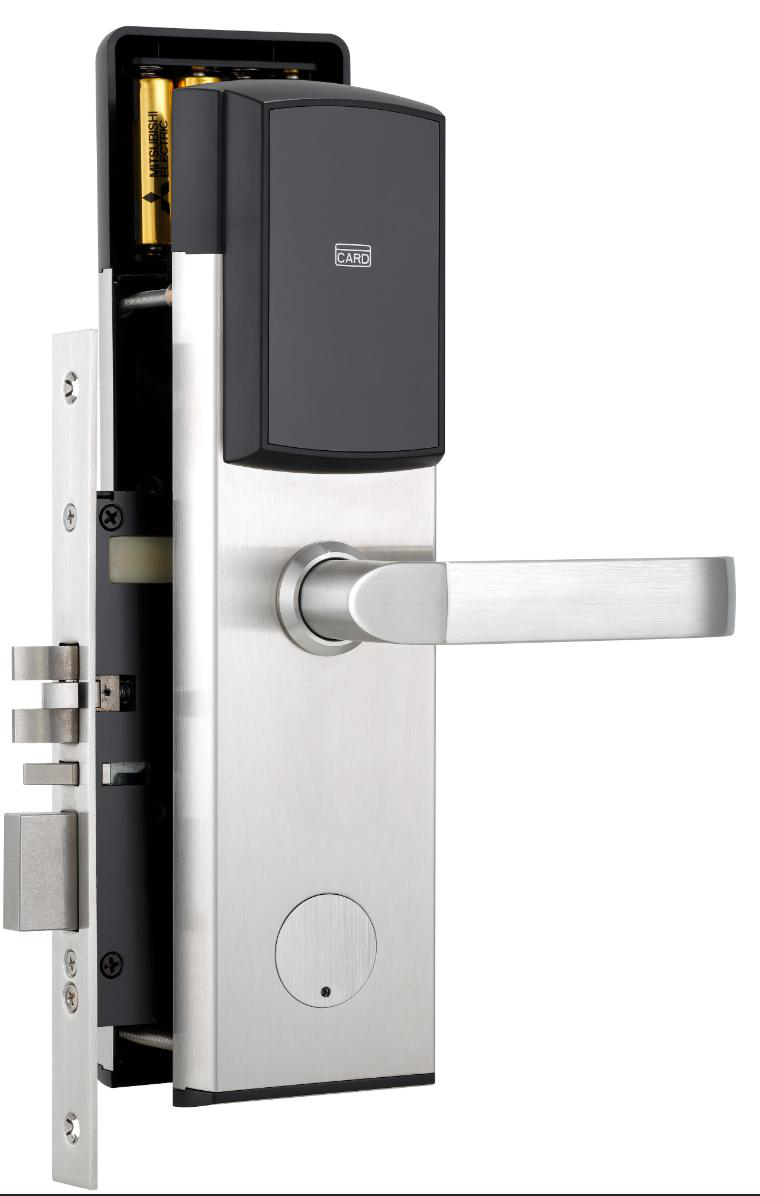

F7-S60

Mifare electronic hotel lock.

Request Quote

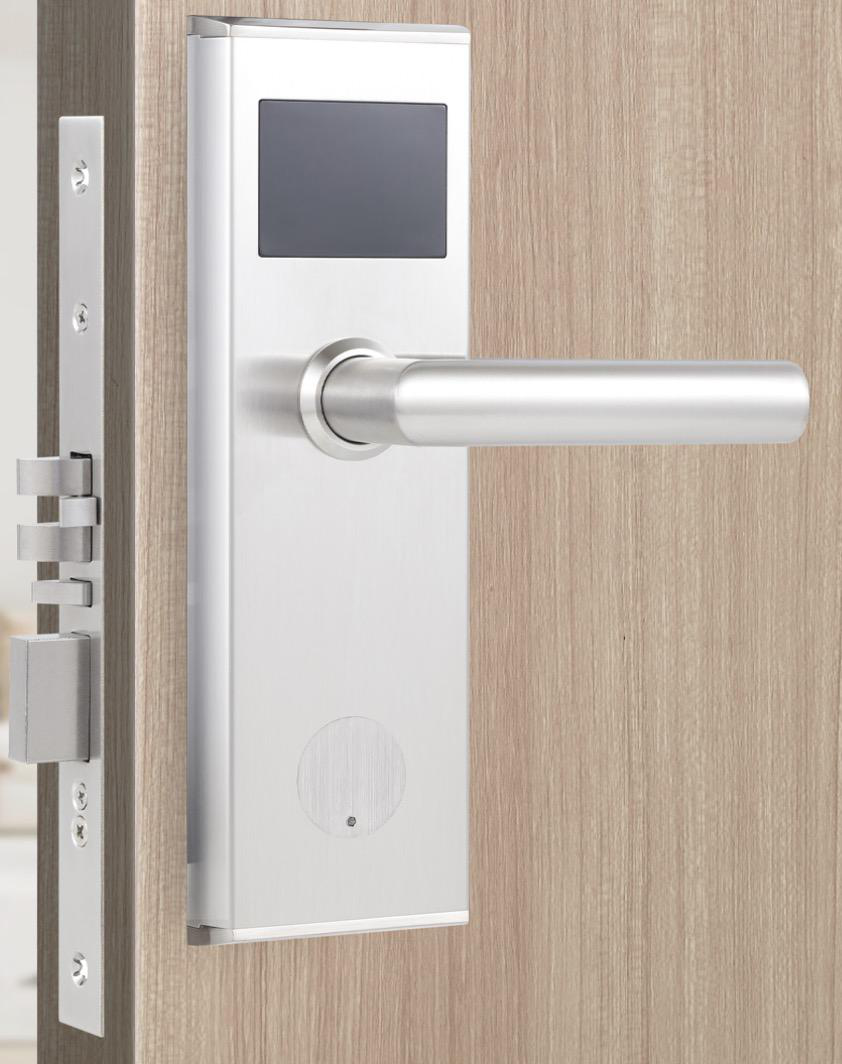

F5-S60

Mifare electronic hotel lock.

Request Quote

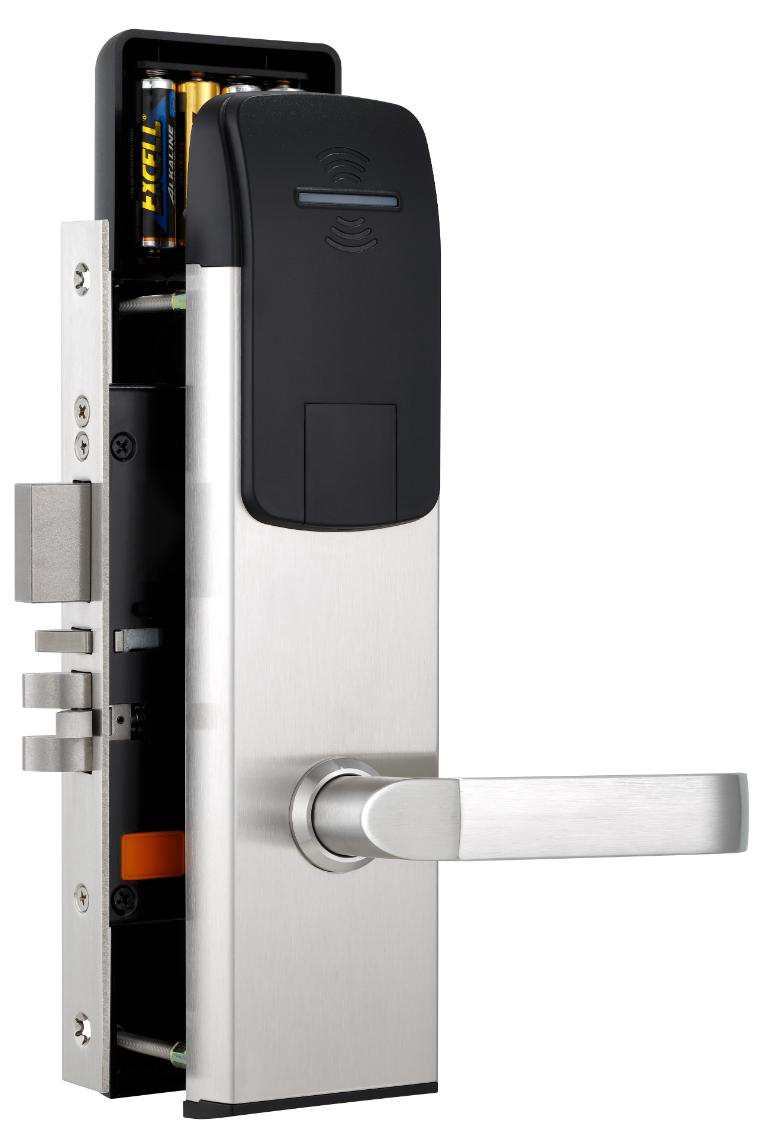

P5-S60

Mifare electronic hotel lock.

Request Quote

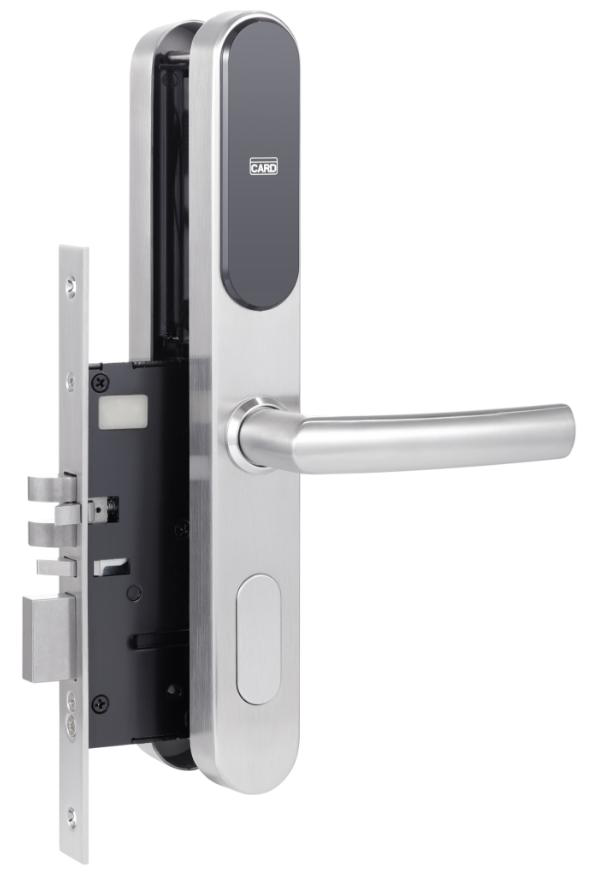

F201M-S60

Mifare electronic hotel lock.

Request Quote

Fire-performance and certification claims apply only to models explicitly verified in the technical documents below.

DND + CARD HERE

Batteryless DND-Integrated System

Reader and control circuit are in the exterior DND panel, while the electric release mechanism is located in the door frame.

How does the batteryless lock system work?

Batteryless DND-Integrated Hotel Lock System

A fixed-power room access architecture where reader and control electronics are separated from the door lock and access is handled through the DND panel and door-frame mechanism.

No battery inside the door lock

Card reader and control electronics in the DND panel

Push-to-open door mechanism

Locking/unlocking completed through the door-frame-side mechanism

Fixed power eliminates periodic door-lock battery replacement

No reader/control board on the moving door simplifies service points

Can be designed with DND / room-status functions

Wiring and frame construction planned at project stage for new hotels

DND Panel

Door Frame / Push-to-Open Mechanism

How does it work?

01Guest presents the card to the DND-panel reader.

02Control circuit evaluates access authorization.

03When authorized, an opening command is sent to the door-frame mechanism.

04Guest enters through the push-to-open mechanism.

Which system fits your project?

Feature	Battery-Powered	Batteryless DND
Power	Battery on door	Fixed power / no door battery
Card reader	On door lock	In DND panel
Control electronics	On door	DND panel / system side
Door mechanism	Electronic + mechanical lock	Push-to-open mechanism
Battery maintenance	Periodic monitoring/replacement	No door battery replacement
New hotel project	Suitable	Especially advantageous when planned early
Renovation	Depends on door structure	Wiring and frame structure assessed

Final specifications depend on the selected real product model, door construction, wiring and verified certifications.

CERTIFIED PERFORMANCE

Certificates & Test Documents

Fire-resistance and electromechanical performance of selected electronic hotel-lock models are supported by independent laboratory test and assessment documents.

EN 14846 classification: The documented S60 models are reported as Grade D for suitability on fire doors, indicating suitability for fire-door assemblies with a minimum classification time of 60 minutes.

EN 1634-1
